IBRB, University of Warwick
Warwick, United Kingdom
The new Interdisciplinary Biomedical Research Building (IBRB) includes state-of-the art laboratory space where researchers investigate how cells and tissues perform mechanical functions. The facility also houses world-class research in neuroscience, microbiology and infection, cell biology, and disease models, supporting and facilitating interdisciplinary biomedical research of the highest quality. The IBRB is the University’s most environmentally sustainable space on campus so far. It demonstrates real progress towards the University’s aim of reaching net zero carbon from direct emissions and the energy it buys by 2030.
As an established supplier, Thorlux Lighting was asked to design an installation that would both complement the architecture of the building while providing a low energy and low maintenance lighting solution.

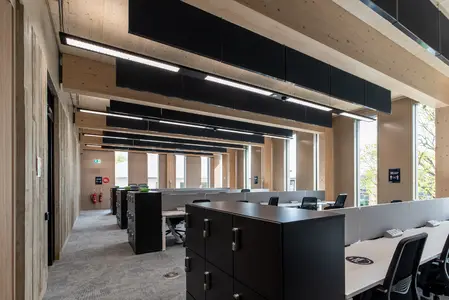

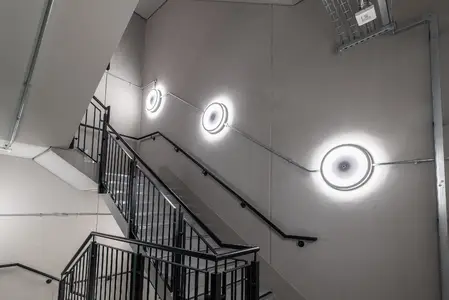

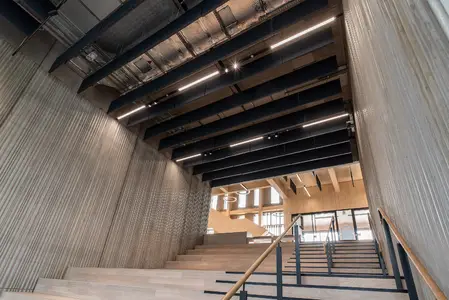

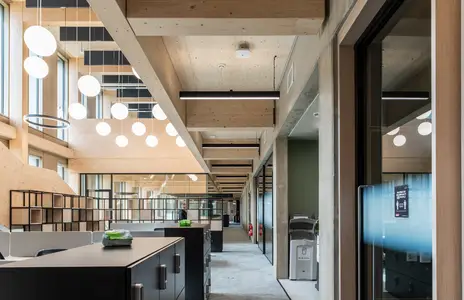

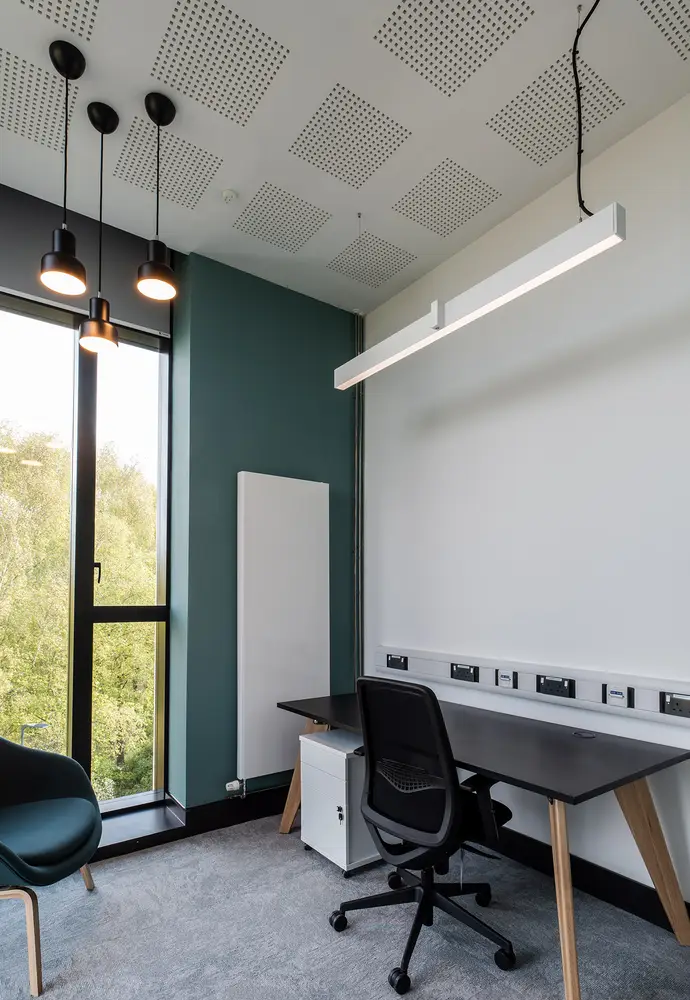

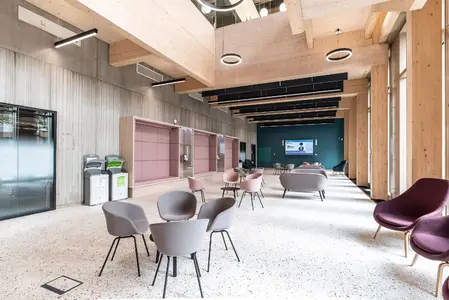

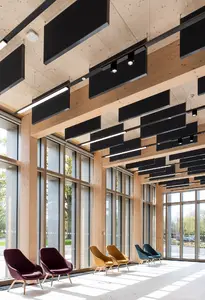

High performance LED luminaires combined with the SmartScan wireless management system were selected for all areas within the IBRB. Integral Smart sensors within the luminaires monitor ambient light and presence, control output to the correct level, dim and switch when there is sufficient daylight and illuminate only when the area is occupied. Lighting controls that combine maintained illuminance, daylight dimming and presence detection will maximise energy savings, in some instances in excess of 70%. Information is displayed on the SmartScan website which can be accessed from anywhere using a computer, laptop, tablet or smart-phone. The clear graphical user interface provides an overview of the whole site, through to the performance and operation of an individual luminaire.
The SmartScan system also has the ability to provide occupancy profiling information. The data collected from the SmartScan Sensor, incorporated into the luminaire, can be used to monitor room occupancy even when the lamp is turned off. SmartScan interactive drawings provide a simple and effective method of viewing system information. The occupancy profile for each sensor is displayed by a range of colours from grey (no occupancy) through to red (occupied continuously throughout the selected hour).

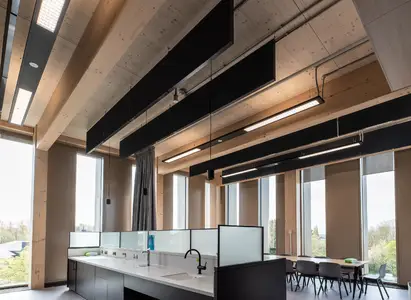

Within the laboratory areas Colour Active luminaires have been installed. The daily ColourActive cycle is configured via the SmartScan website. Preset regimes follow the natural daylight rhythm, or specific settings can be set and tailored as required. This gives the user complete freedom to set a colour temperature regime that suits the building’s usage pattern. Colour temperatures are set at hourly intervals on the website, where they are processed and transmitted to the building’s ColourActive Gateway. Changes in colour are gradual between settings.
