Flexline

Extremely narrow profile linear luminaires

FEATURES

OVERVIEW

  • Ingress Protection Rating IP20
  • LED
  • CE Marked
  • Energy saving Smart versions available
  • SmartScan Internal
  • SmartScan Internal with Emergency

A super narrow linear luminaire designed specifically for mounting to exposed T-Bar ceilings. With sophisticated, highly efficient low glare optics, Flexline offers a radically different solution to conventional 600x600 luminaires.

Applications: Teaching spaces, Offices, Corridors, Waiting rooms, Reception areas, Retail

Flexline Specification Text

Flexline

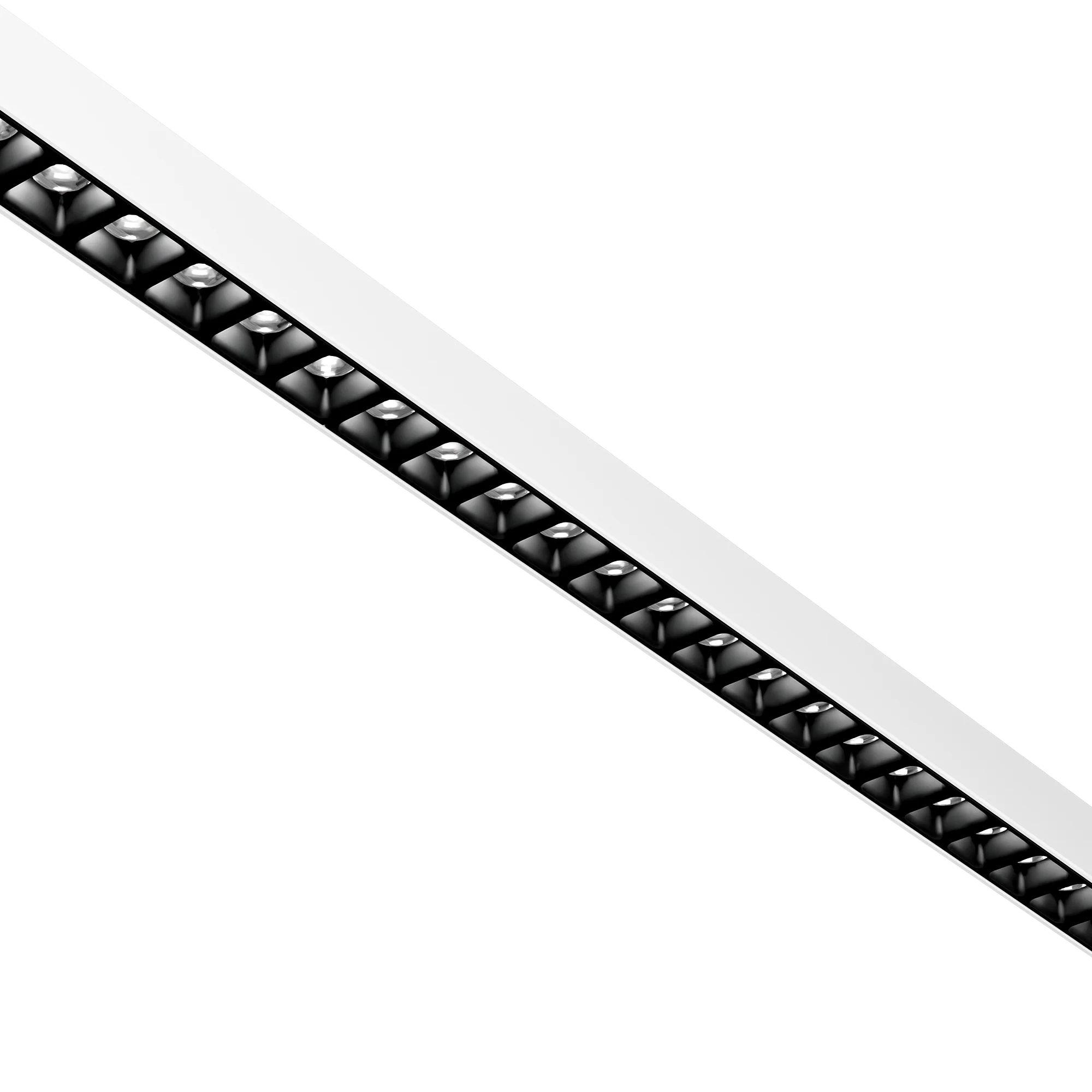

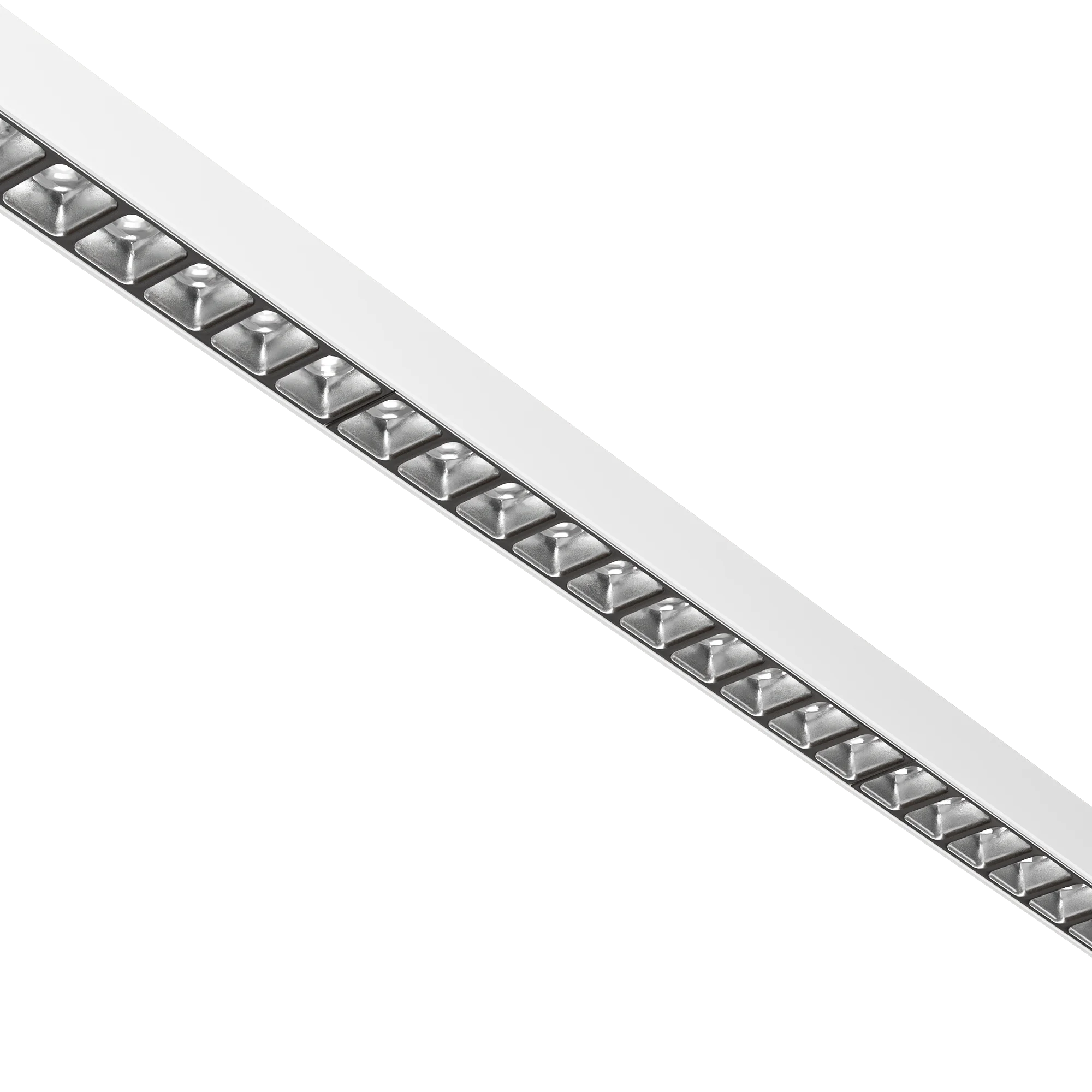

Extremely narrow, high performance linear luminaire manufactured from extruded anodised aluminium, and available in standard lengths or kits to form different geometric shapes. A patented optical assembly comprises of a collimator per LED for very high efficiency. A nanoprism diffuser is used, de-glaring the intensity of the LED. A louvre provides the final glare control and is available in black, metallised or white finishes to match the application.

The luminaire is 24mm wide and clips directly to standard ceiling T-Bar using tool free spring clips. IP20. LED light engine providing 100,000 hour life, 4000K, CRI 80+ The remote gear unit clips onto the ceiling grid and supplies power to the luminaire with a flat ribbon cable so it can be installed without cutting ceiling tiles. Control gear replaceable for future maintenance.

Manufactured in the United Kingdom.

For lumen output and luminaire lumens per circuit watt information please refer to luminaire performance document.

Copy Specification Text

Flex System - Rethink the Possibilities

Flexline - Single and Twin Installation Guide

Hands On With The Flexline

Flexline - Quadrant Installation Guide

Flexline Icon

Flexline

Flexline all versions

Think outside the tile

The super narrow 24mm profile is designed specifically for mounting to an exposed T-Bar ceiling and contains sophisticated optical elements making the Flexline a unique, highly efficient luminaire.

Flexline Icon

Flexline

Kits

Flexline single 2.4m

Single

1.8m

Flexline single 2.4m

Single

2.4m

Flexline single 3.6m

Single

3.6m

Flexline single 4.8m

Single

4.8m

Flexline twin 2.4m

Twin

1.8m

Flexline twin 2.4m

Twin

2.4m

Flexline twin 3.6m

Twin

3.6m

Flexline twin 4.8m

Twin

4.8m

Flexline corner

Corner

1.8m

Flexline corner

Corner

2.4m

Flexline square

Square

1.8m

Flexline square

Square

2.4m

Flexline rectangle

Rectangle

2.4m x 1.2m

Flexline Icon

Flexline

Construction

Ribbon Power Cable

The flat profile of the power cable, connecting the luminaire to its power pack, can be routed so there is no need to cut tiles.

Tool Free Installation

Luminaires clip to the T-bar without the need for tools.

Remote Gear Unit

Control gear is contained within a metal flame retardant enclosure located above a tile and firmly clipped to the grid.

Push-fit Connections

Flexline can be connected together for a continuous line of light. Kits can be joined using steel springs (included) or finished using push-fit end cap.
