Product details
- Dual light engine design, perimeter light engine for main illumination and secondary light engine for the picture window

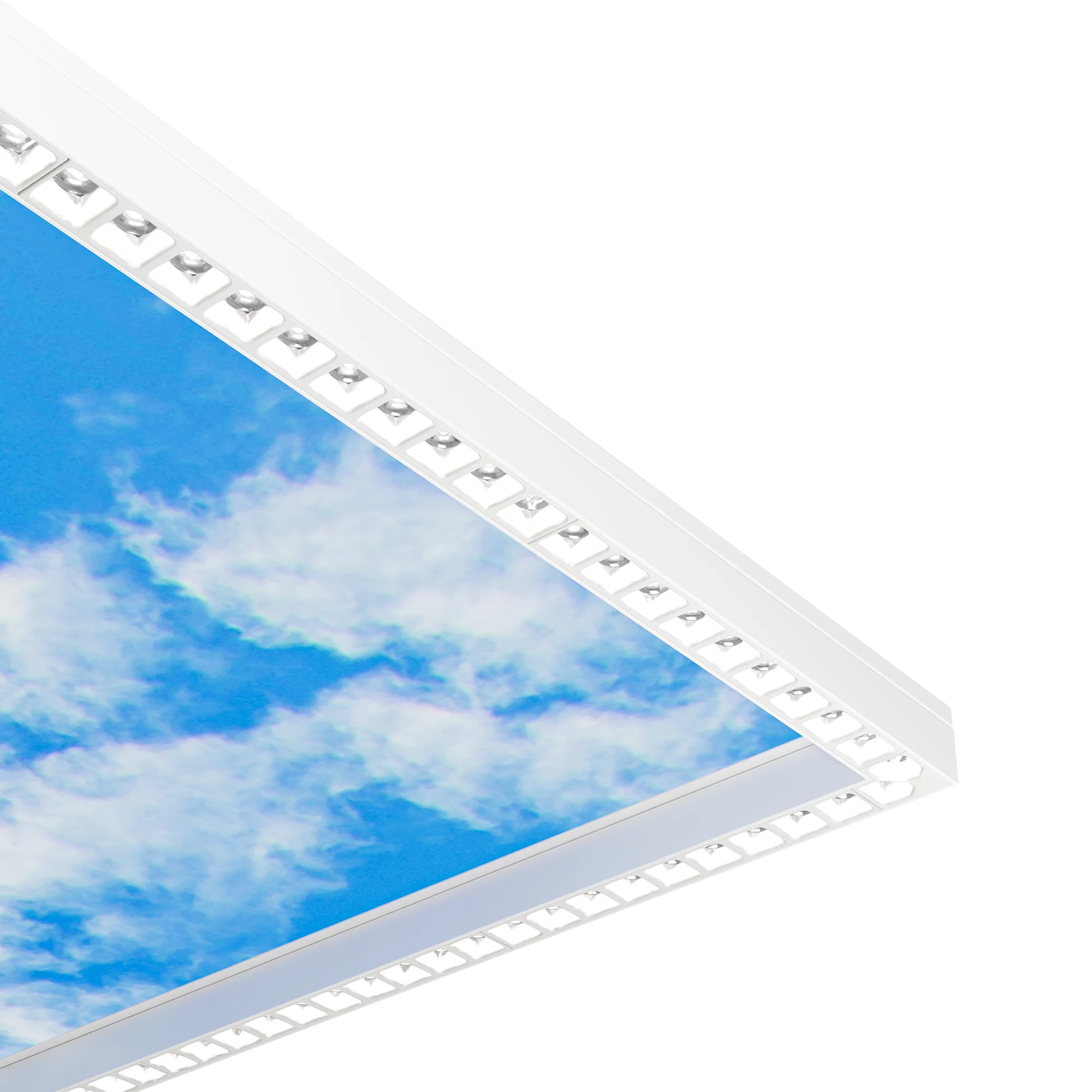

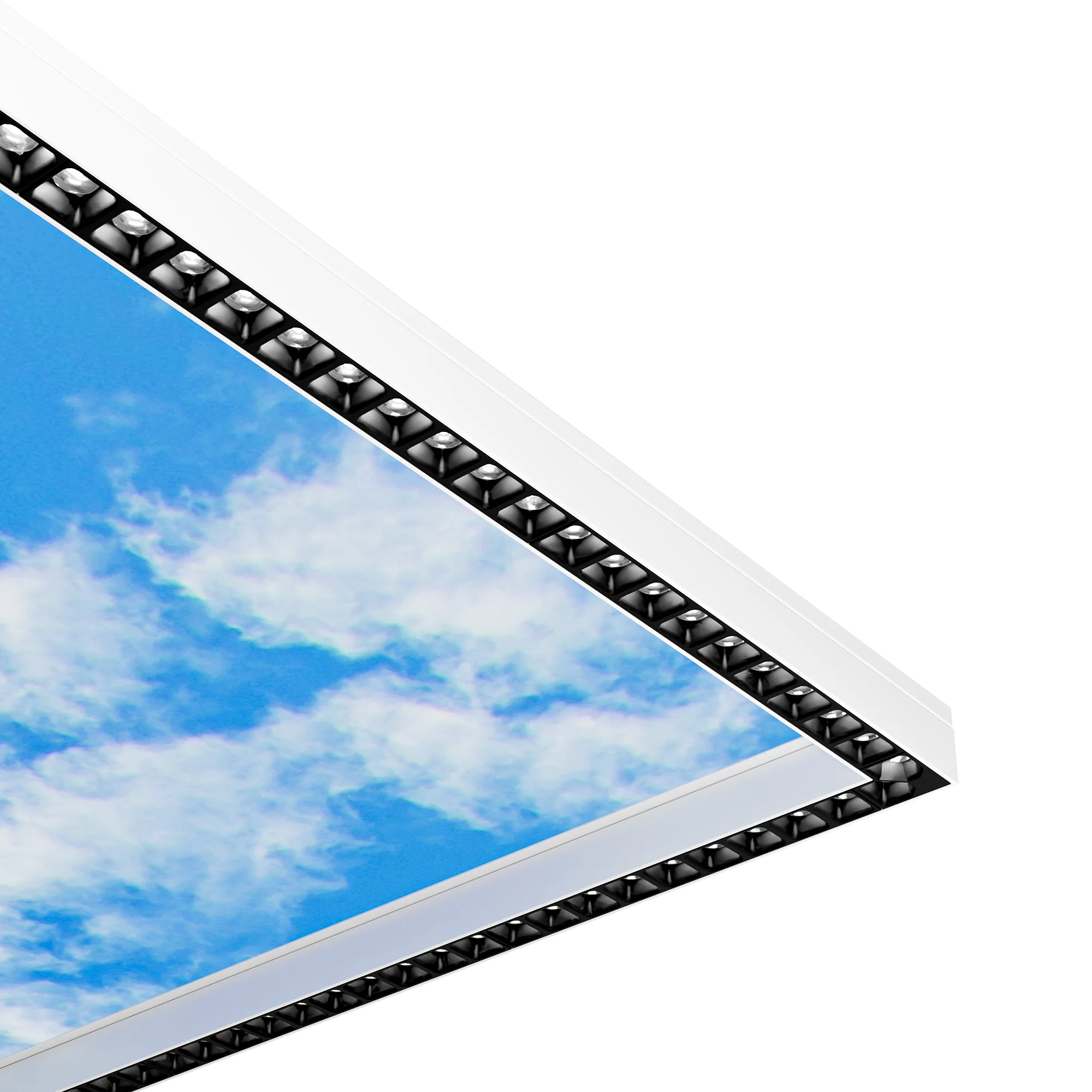

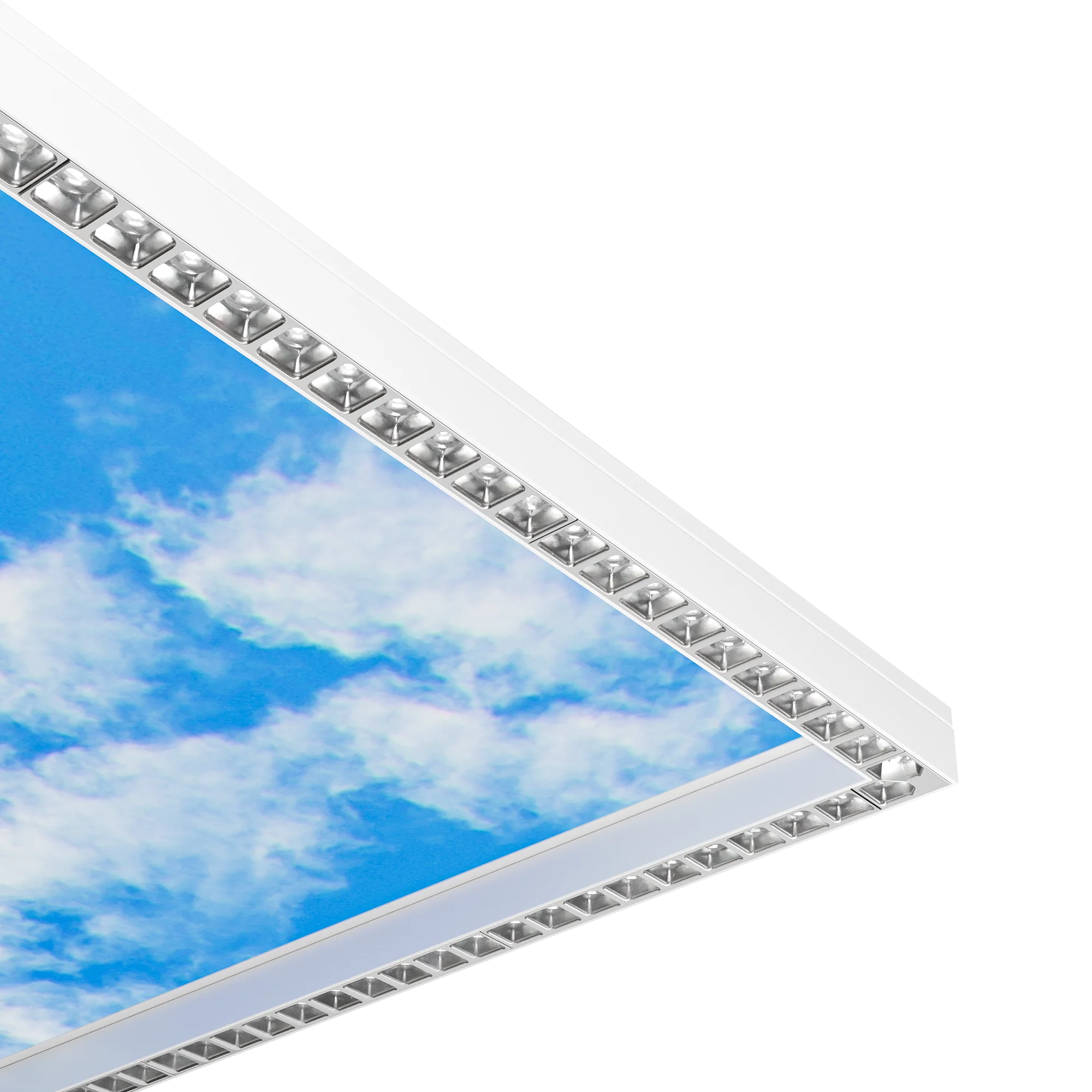

- Black ‘invisible’ light source, metallised low glare and white reflector options
- Wattage selectable during installation
- Edge-lit panel remains at constant brightness (does not dim)
- Image screen printed onto 1.5 mm polycarbonate TP(a) rated fire-retardant panel

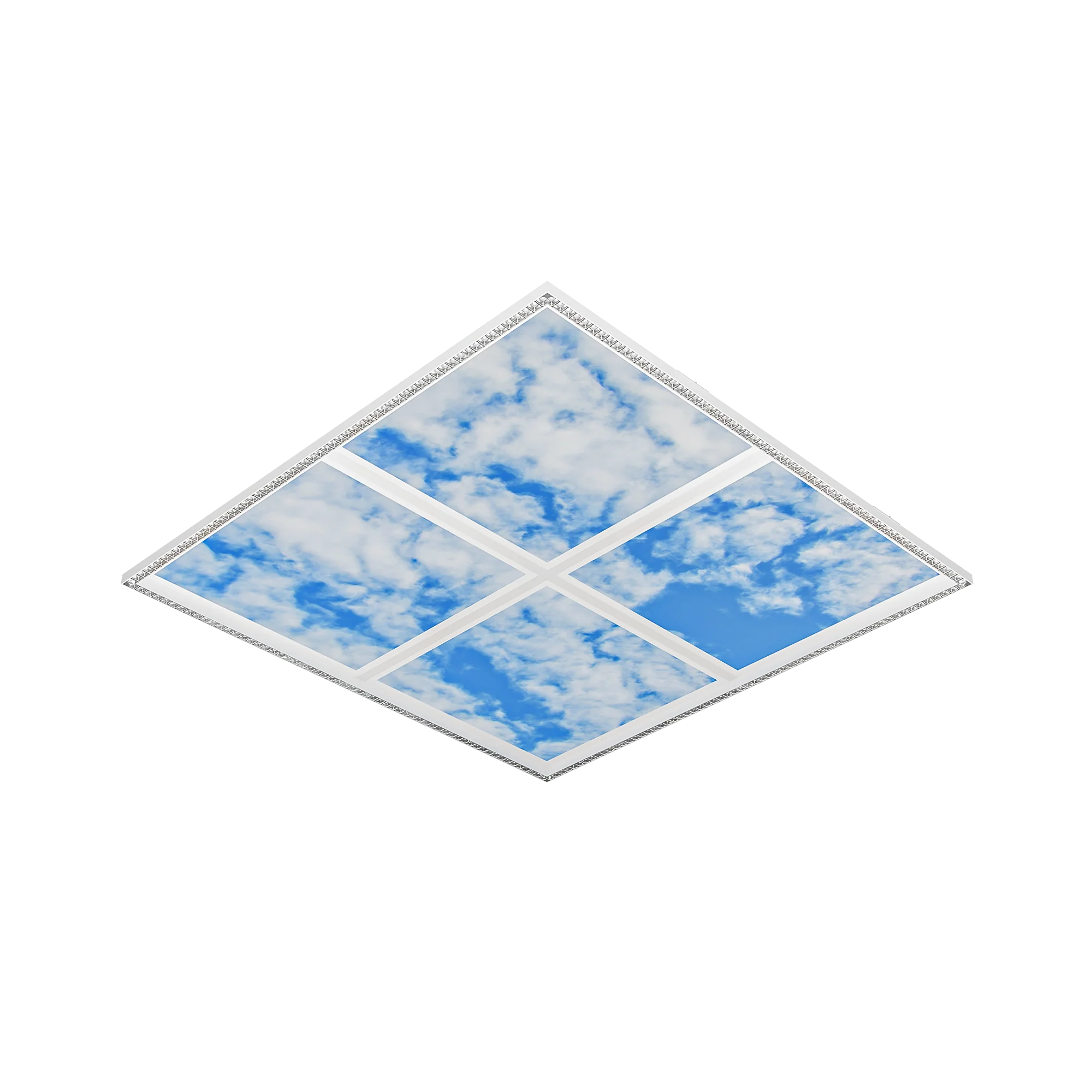

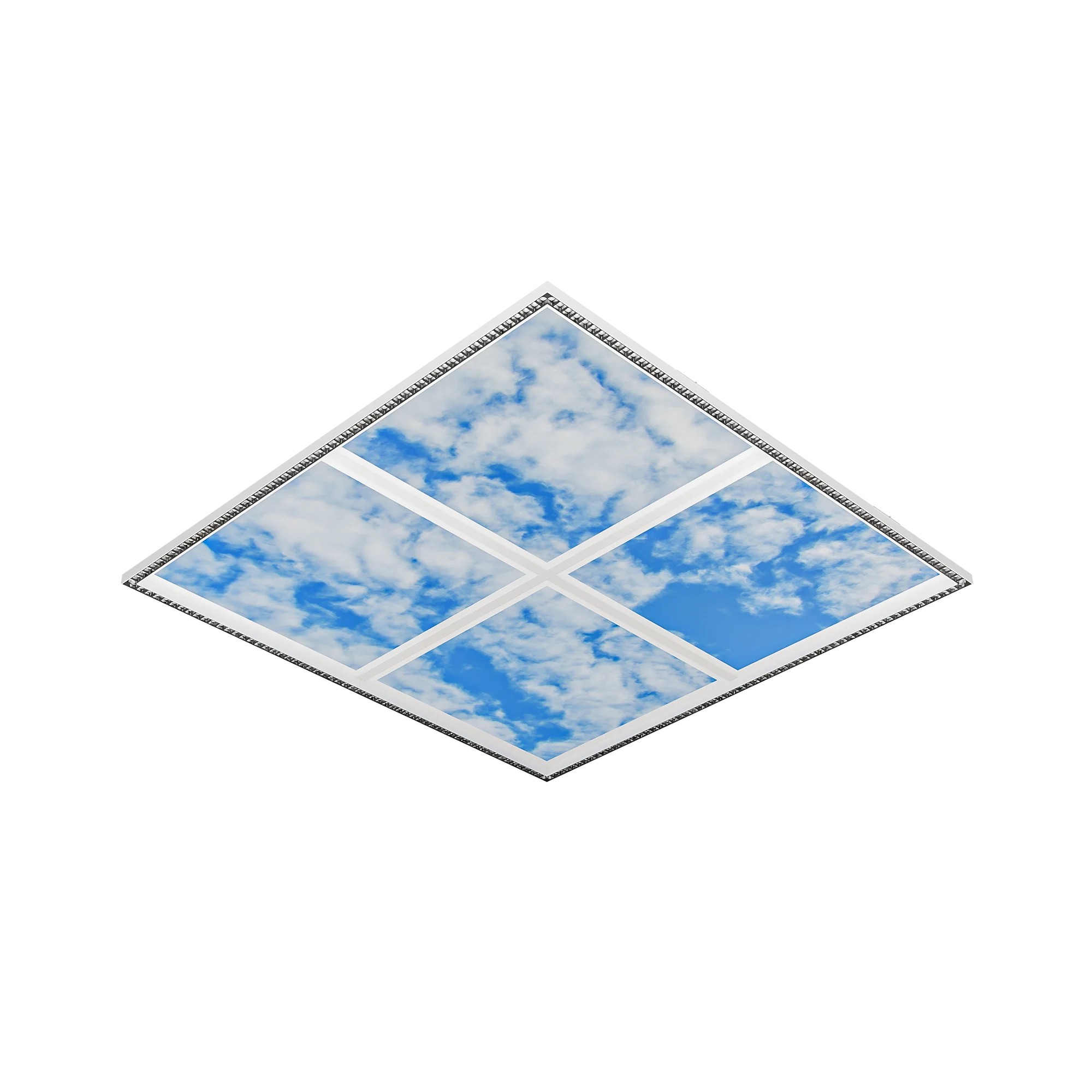

- Multiple kit options available, all with the primary light engine only around the perimeter of the array
Specification
Lighting management
Lighting control system
Dimming (DALI)
Non-dimming
SmartScan Internal
Emergency system
AutoTest Emergency
Non-emergency
SmartScan Emergency
Standard Emergency
Specification
Mounting
Recessed
IP rating
IP20
Max presence detection height
8 m
Lighting
Lumen output
1,630 lm - 11,025 lm
Efficacy
Up to 105.7 LL/CW
Emergency data
Emergency lumen output
259 lm - 370 lm
Emergency type
Maintained
Emergency duration
3 hours
Battery specification
Nickel Metal Hydride (NiMH)
Power
LED power
20 W - 148 W
Circuit power
24 W - 164 W
LED characteristics
CRI
80+
Colour temperature
4000 K
Rated life (hours)
100 K - L80/B10
Compliance
UKCA
Yes
CE
Yes
Energy efficiency class
This product contains a light source of energy efficiency class B
Thermoplastic rating
TP(a)
SmartScan wireless standards compliance
Europe: EN 300 220-1 V2.4.1/ EN 301 489-3 V1.6.1. Australasia: ACMA 2014 Radio Communication Standard 2014. Thorlux Patented Wireless Technology - GB2575724
