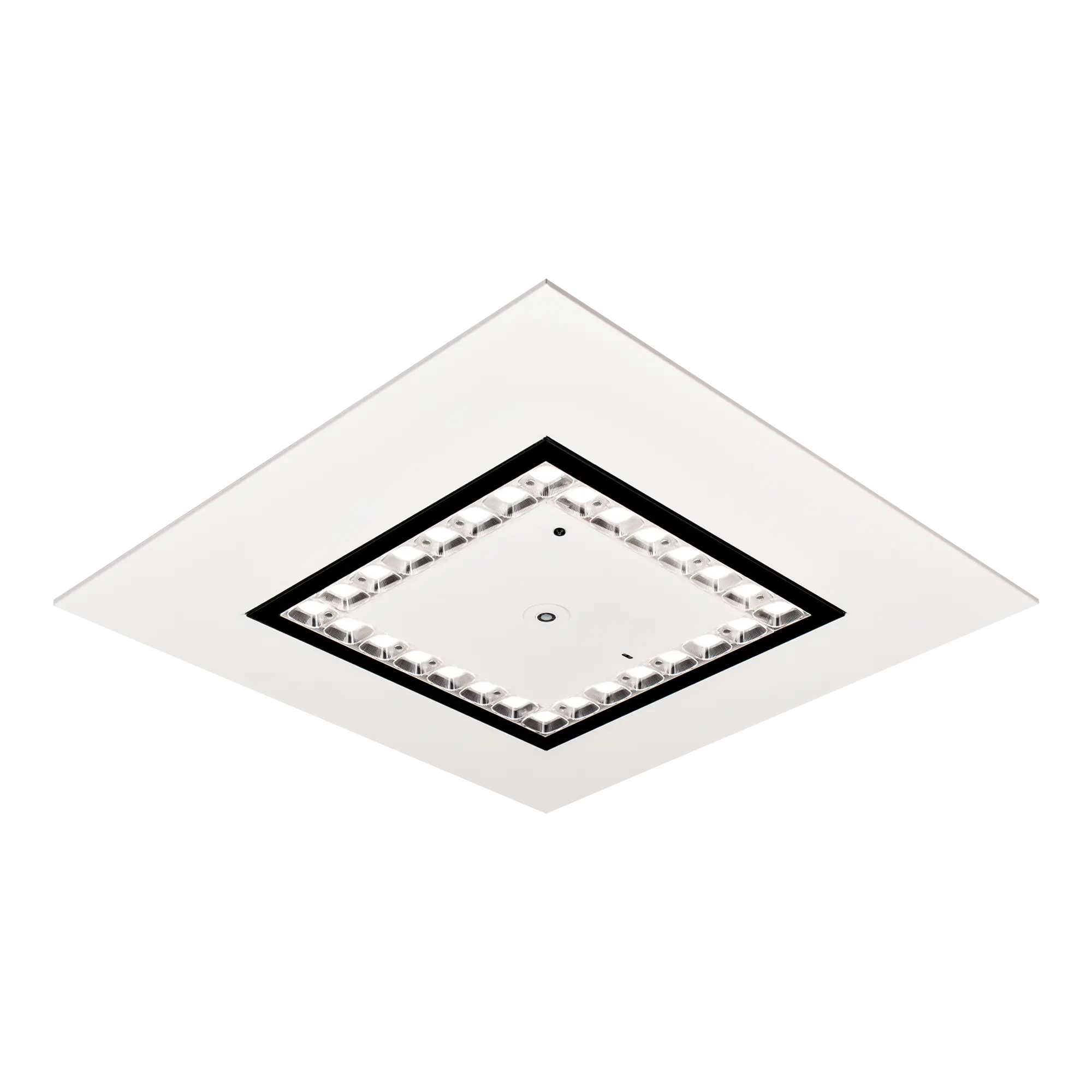

Tetra Max

High efficiency, low glare recessed luminaires

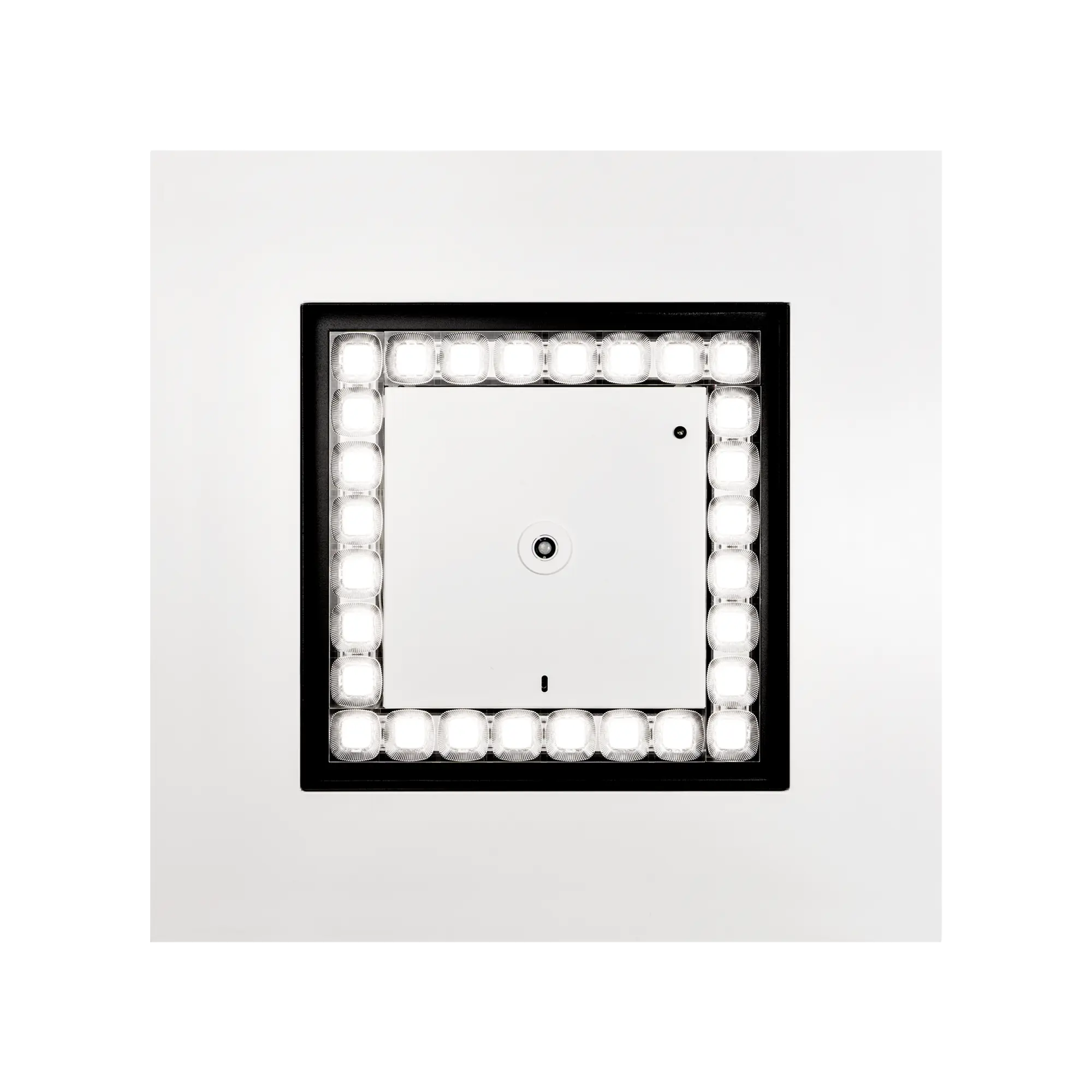

The Tetra Max is a modern 600 x 600 recessed luminaire that offers unparalleled glare control and energy efficiency. Utilising a optical design that combines a reflector and individual optical lenses for each LED. Compliant with EN12464-1 / LG7 (<1500 cd/m² @ 65°)

With a shallow depth of just 40 mm / 69 mm with TEE-piece (SmartScan versions) and easy access drop down gear tray, the Tetra Max has been designed with efficient installation and maintenance in mind.

Applications: Offices, meeting rooms, call centres, libraries, control rooms, reception areas and circulation areas.

Tetra Max datasheet Specify Tetra Max

Product details

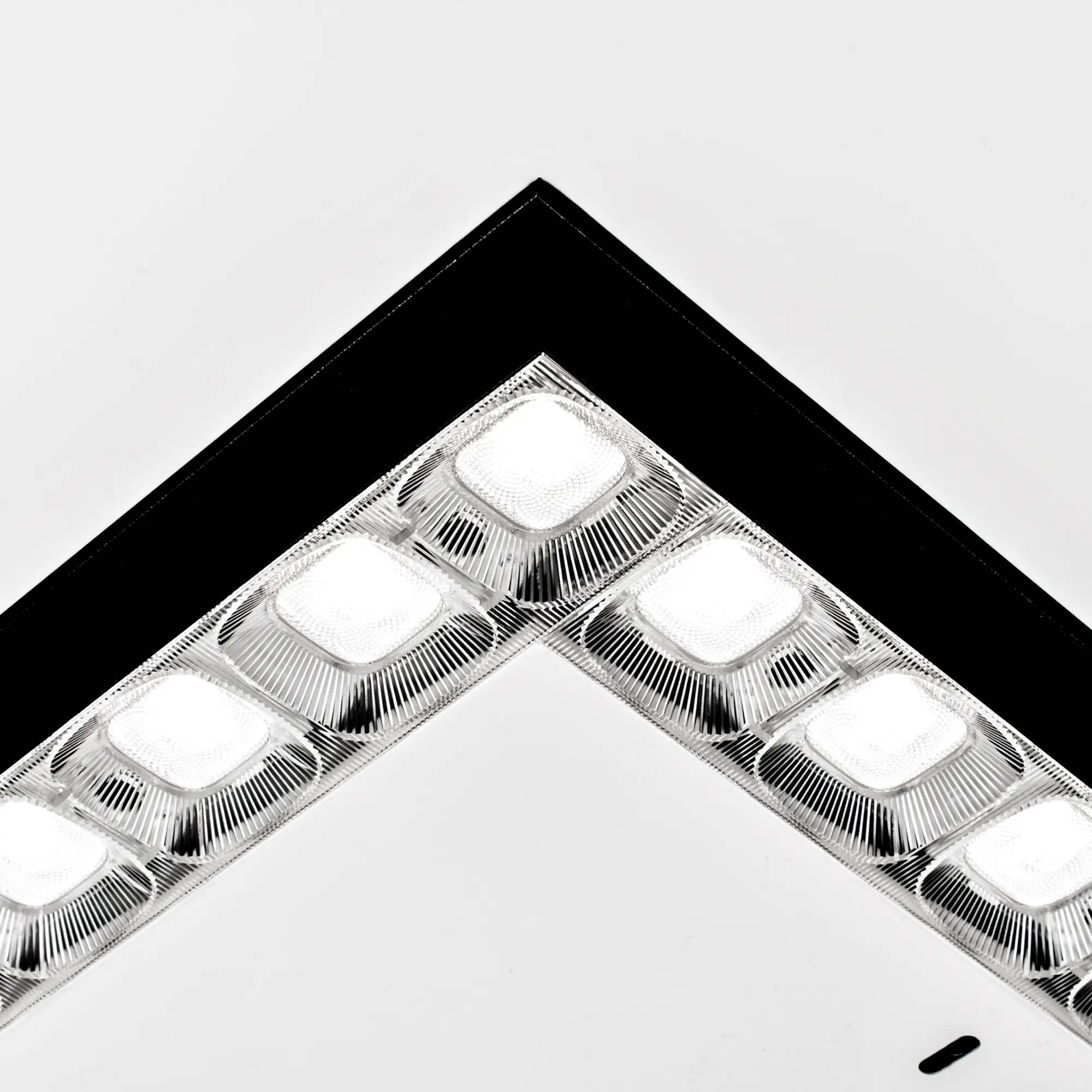

  • Ultra low glare with custom optical system
  • <1500 cd/m² @ 65° (EN12464-1 / LG7 compliance)

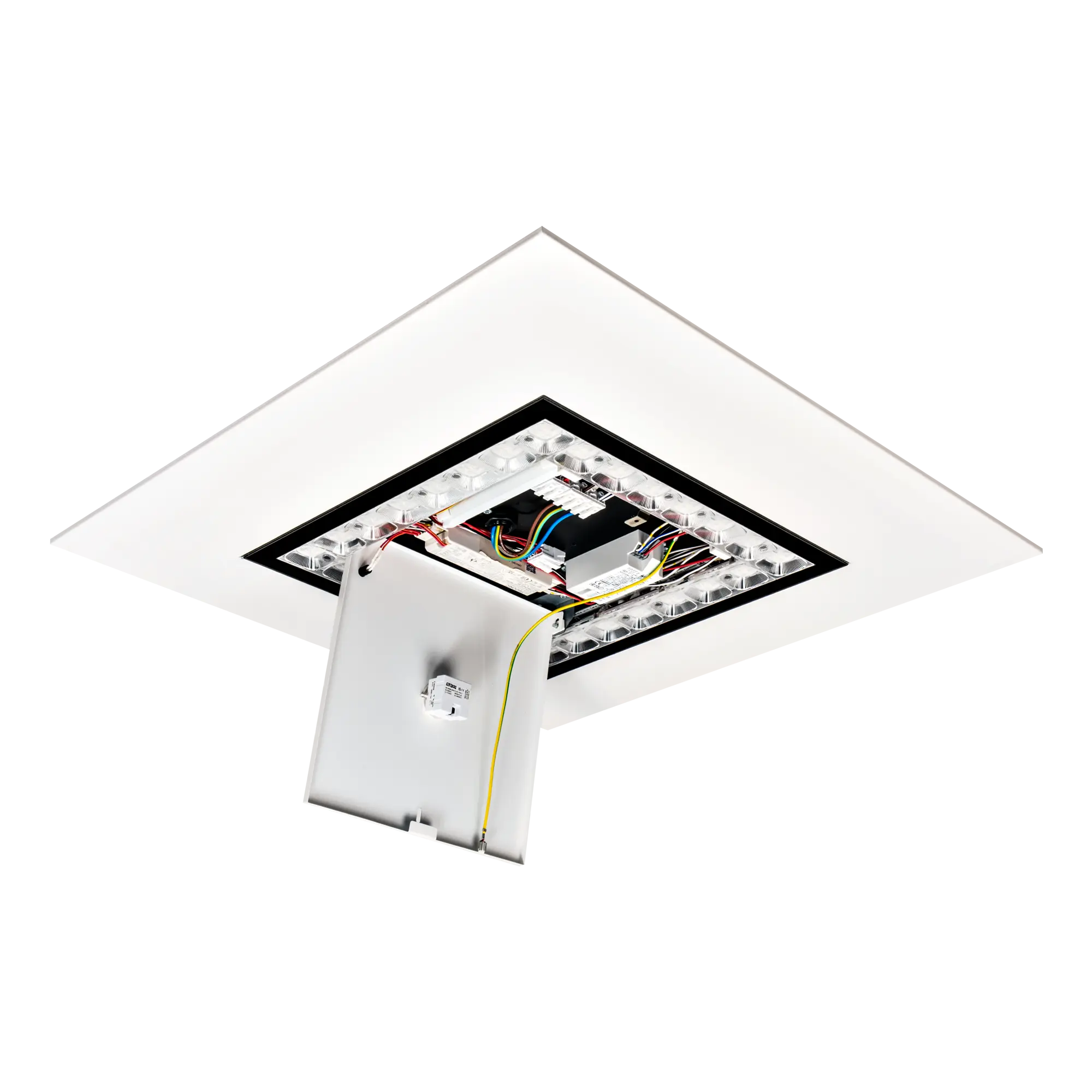

  • Drop down centre gear tray for easy access / maintenance
  • High efficiency (up to 170 LL/CW)

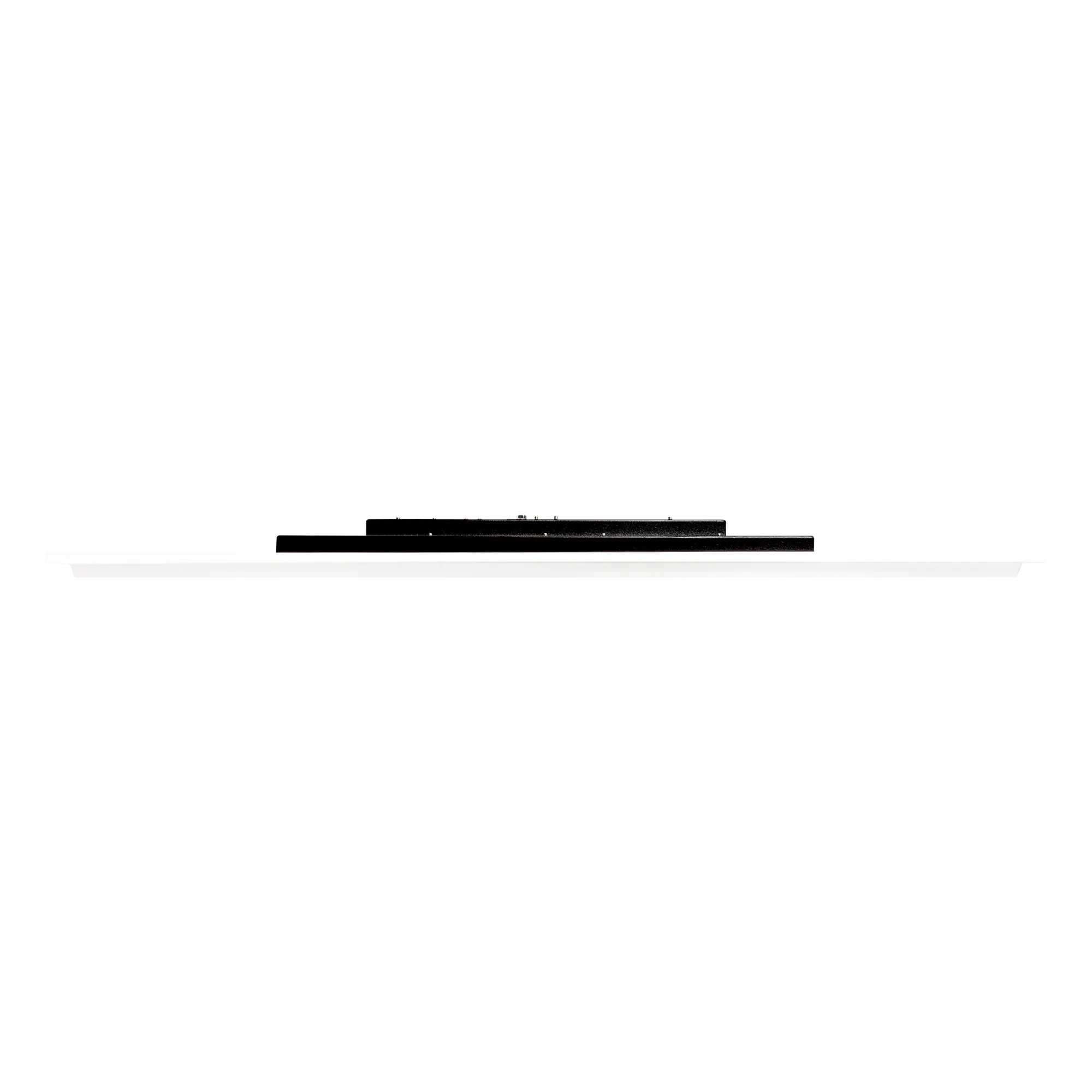

  • Shallow body depth of 40 mm or 69 mm for SmartScan versions with TEE-piece

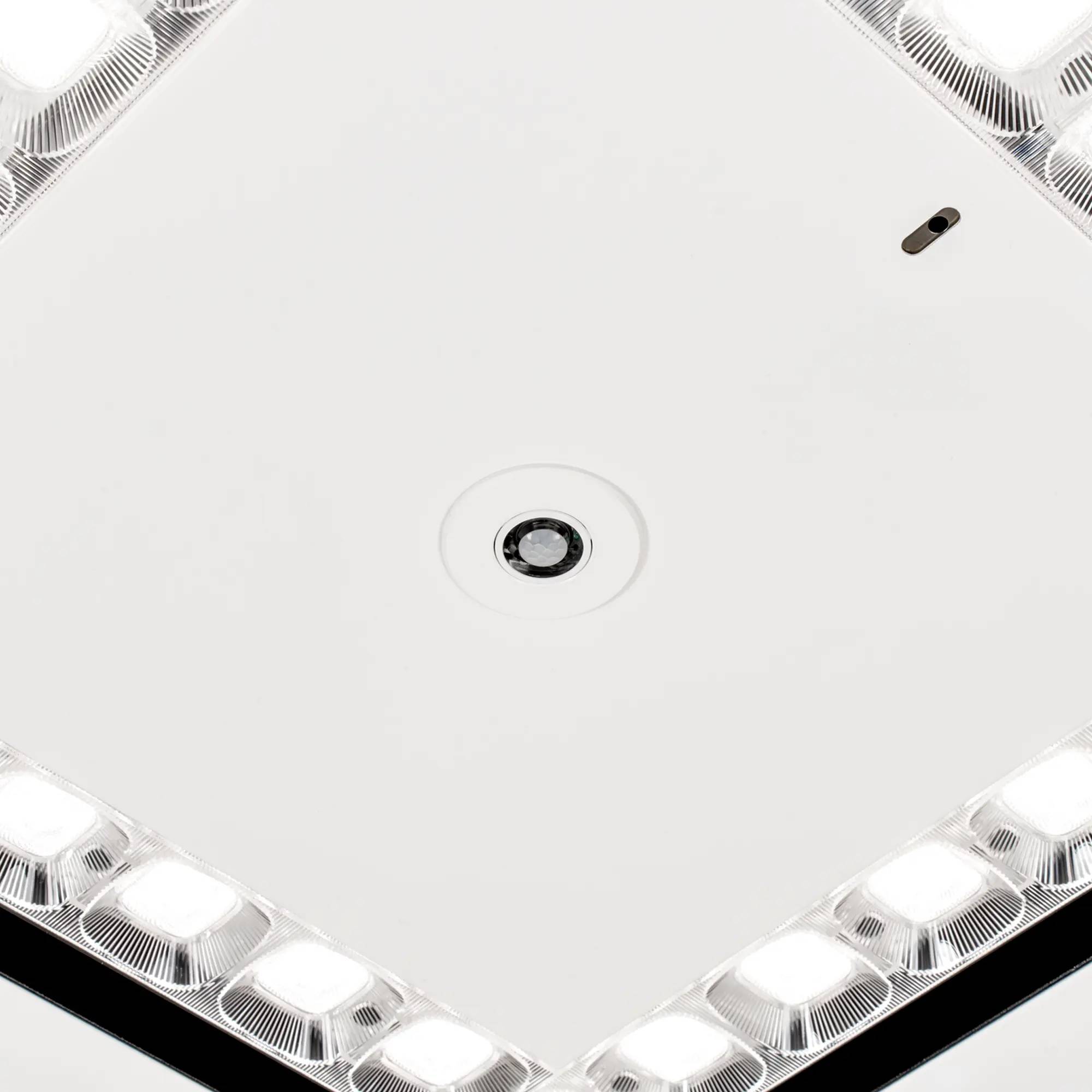

  • SmartScan wireless technology removes the need for control cabling. Ideal for retro-fit
  • Suitable for most ceiling types, with optional side arm suspension and plasterboard mounting kits

Notes: To maintain a shallow 40 mm profile on SmartScan variants, suffix part number with 'NT' to specify without TEE piece.

  • IP20

  • Up to 170.7 LL/CW

  • SmartScan
  • LUX Guard
